Breathly 2.

A wall-placed vending stand engineered for bars, clubs and venues. Slim two-post frame, rigid concrete base, and a glowing neon header that reads across a crowded room.

Height
1900 mm
Footprint
800 × 500 mm
Weight
~ 145 kg
Mount
Wall · Indoor

Topped with neon.

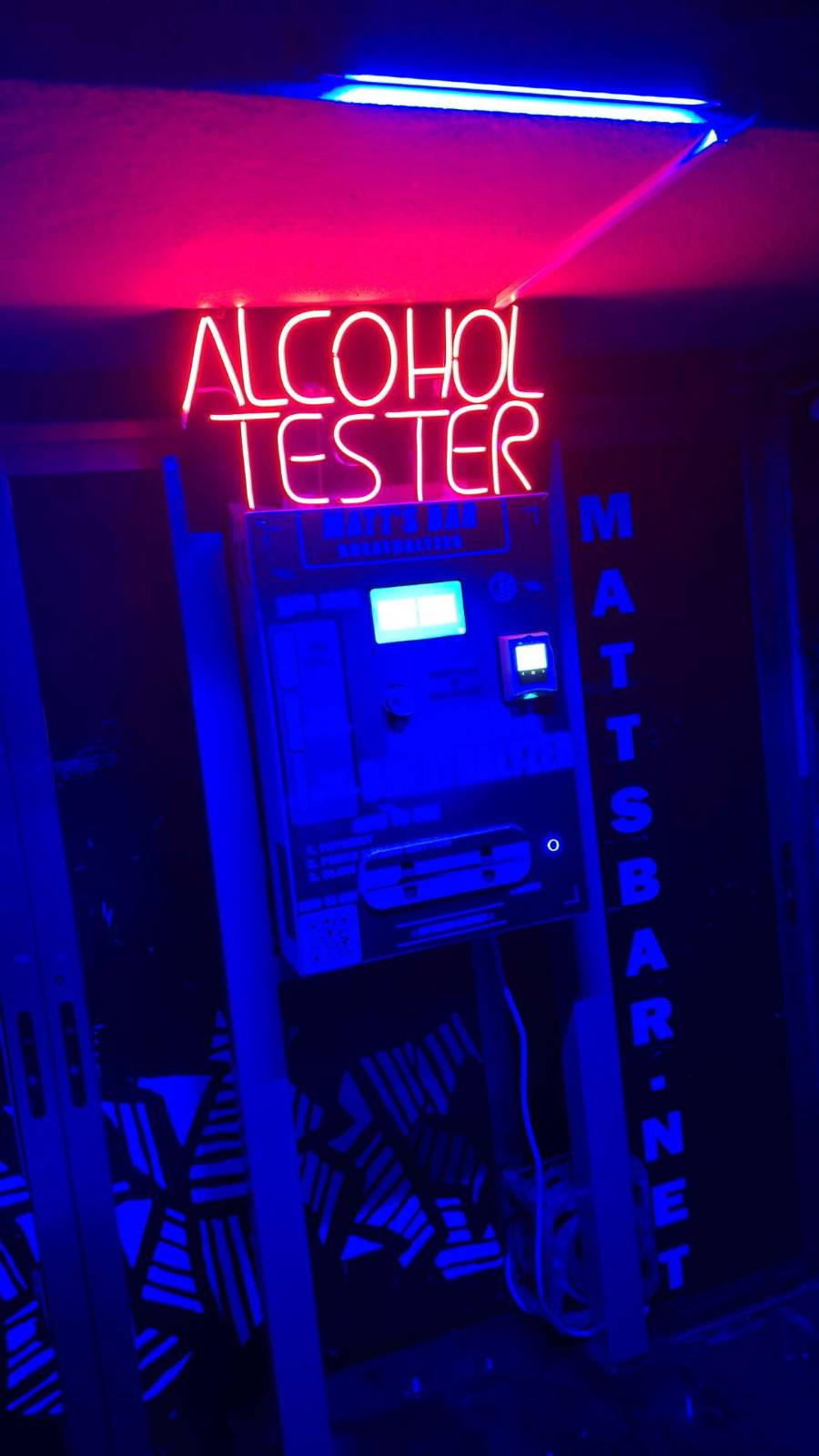

A red neon header sits above a fully customisable display panel — built to pull a queue at the bar.

Reads across the room.

The lit header is the draw. A glowing ALCOHOL TESTER sign tops every stand, while the display below carries the host venue's own branding, colours and level graphics.

Insert payment, take a fresh mouthpiece, blow — the panel lights up the result. Designed for entertainment and shared moments at the bar.

Neon header Custom display Card & coin Single-use mouthpiece
YOUR LEVEL ALCOHOL BREATHALYZER STRAW HERE ALCOHOL TESTER

Form, front and side.

Three orthographic views of the Breathly 2 wall stand. All measurements in millimetres, from finished floor.

[01] Isometric
ALCOHOL TESTER
Isometric view
[02] Front · 1:15
ALCOHOL TESTER 1900 1100 700 1500 200 800 540 500
Front view
[03] Side · 1:15
WALL 1900 1500 1100 150 500
Side view

Built for the long season.

The Breathly 2 is engineered for stability without bulk — a slim two-post frame on a two-block concrete base, sitting flush against a solid wall in bars, clubs, hotel lobbies and indoor venues.

Powder-coated steel in matt anthracite. The neon header and the display panel are both customisable for partner branding.

Note · Supplied installation-ready and wall-placed. Neon header text, colours and display graphics are tailored to each host venue.
Total height
1900 mm
Base footprint
800 × 500 mm
Concrete base
800 × 500 × 200 mm · two-block
Post height
1490 mm
Post centres
540 mm
Display unit
500 × 200 × 700 mm
Mouthpiece height
1500 mm
Front projection
150 mm
Total weight
~ 145 kg
Frame
Steel · powder-coated
Finish
RAL 7016 anthracite · matt
Mount
Wall-placed · Indoor
Header
Neon sign · custom

Get a Breathly 2.

Tell us about your venue or event. We respond within one business day with availability, lead time and a tailored proposal for your site.

Lead time
From 6 weeks
Branding
Neon + display
Service
Full operations included
